A visit to DL7ON January 2003

DL7ONīs station is located NW of Berlin on flat terrain, ideally suited for lowband

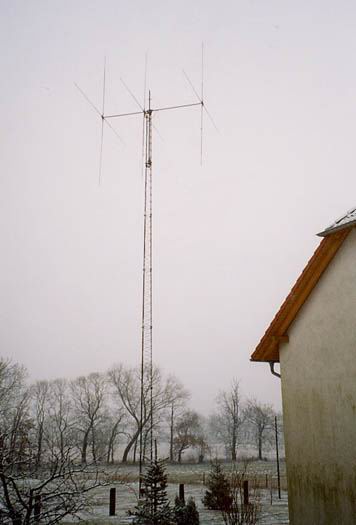

verticals.  The 20m self-supporting tower holds up a 3el VDL Quad, the lowband

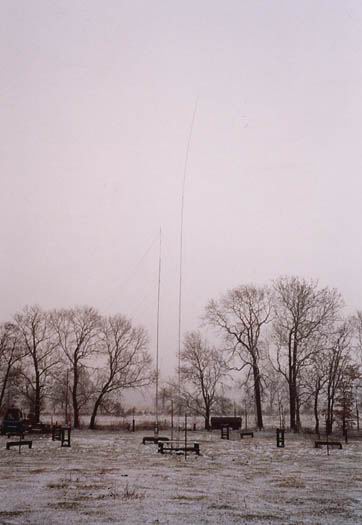

setup consists of a 26m Titanex vertical (front) and a 24m aluminium mast.  The
mast supports an 80m wire 4-square and a 40m 4el parasitic K8UR array.
There are Beverages to NW & NE.

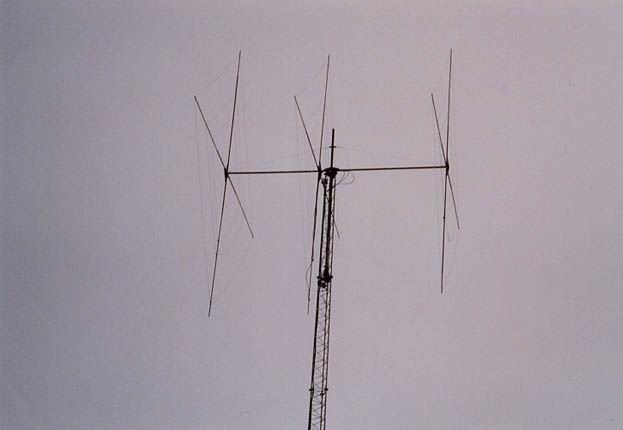

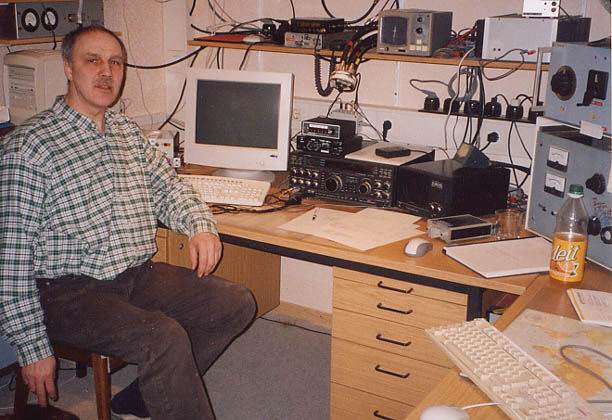

Close-up view of the Quad.Fritz at his functional operating position:
FT1000D, homebrew PA
& antenna switching, CT. © by Stefan v. Baltz, DL1IAO
