 |  | | TH6 @19m, 40-2CD @22m | 80/160m 18m high toploaded Vertical with
60 Radials which gets out very well into EU |
|
|

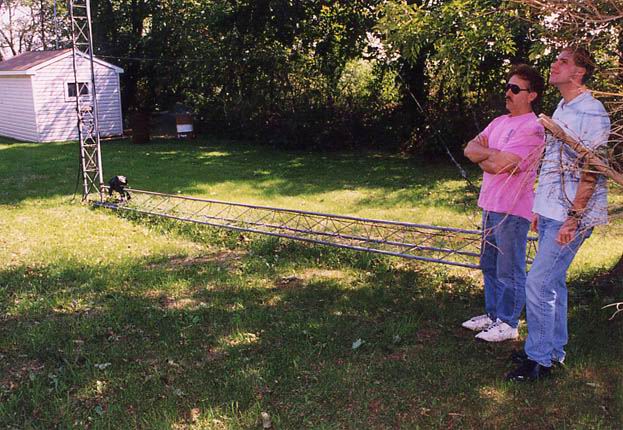

 |  |  | The tower can be
folded over to main
the antennas | The base of the Vertical
with the 160m linear
loading tubing and
the tuning circuit | Tuning circuit |
|
|
 |  | | New tuning circuit for the Vertical | Stew likes to design and build RF circuits! |
|
|
 |  |  | Stew K3ND in his neat
shack: TS850 + SB220.
The linear on the left is
a homebrew SB220 clone
used on 40-160m | The right PC is used for
Packet and Geoclock | Backup operating postion |
|
|
 | The rotor control box is homebrew
and looks like a nautical instrument! |
|
