WAEDC SSB 1999 N3RS MS

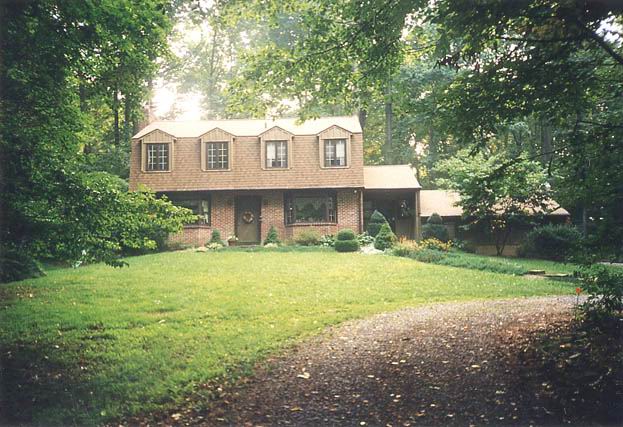

Sig´s property is located on a wooded hilltop with free shots to all
important directions.  The towers are some 100m behind the house.

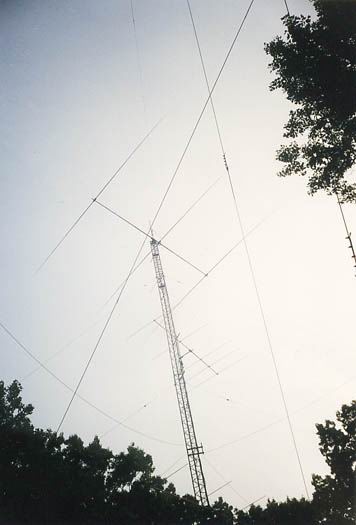

80m 4el K8UR Array,
40m 3el fullsize @40m,

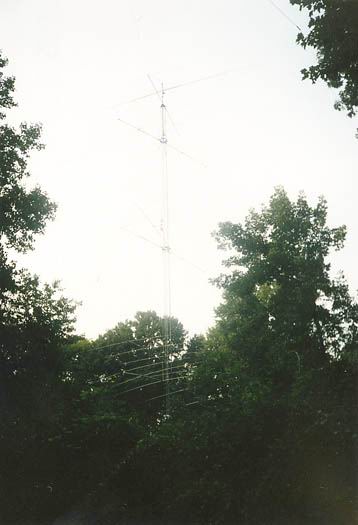

10m 5/5/5 on sidemounts		The 2nd tower with
80m Force12 Rot. DP @42m,
20m 5/5/5 on TIC rotors,

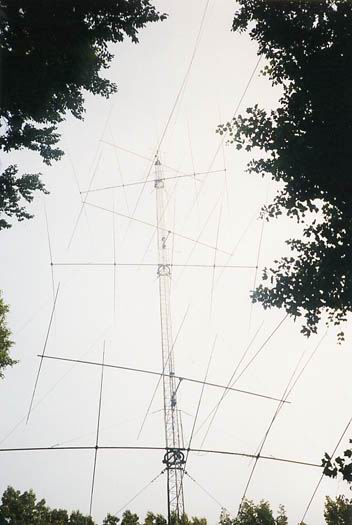

15m 4/4/4 on sidemounts		Closer view of the 20
& 15m stacks.  All Yagis
except 40m are designed
and built by N3RS.
A 160m T-Vertical hangs
between the two towers.

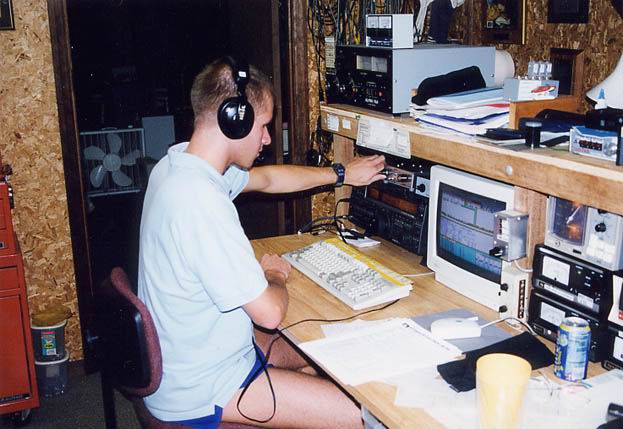

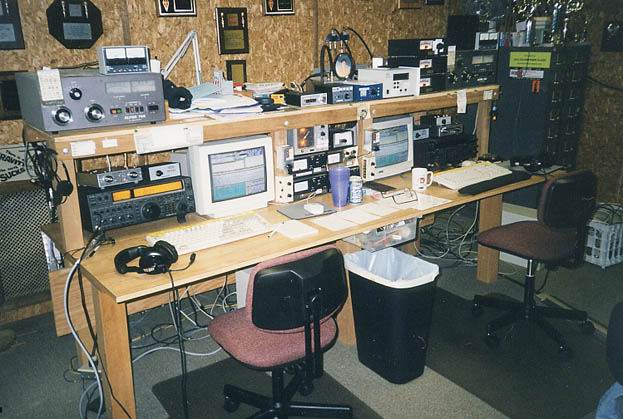

Left station:

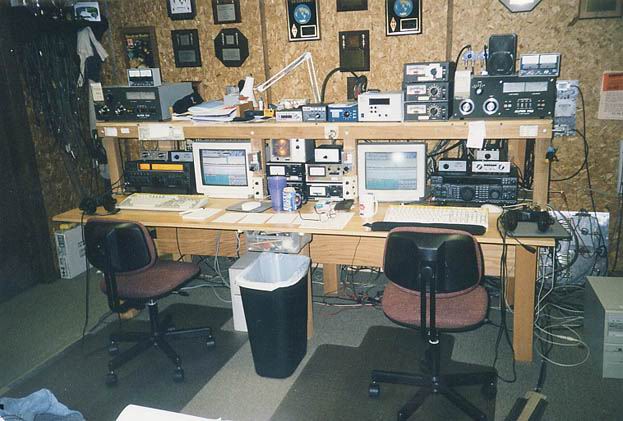

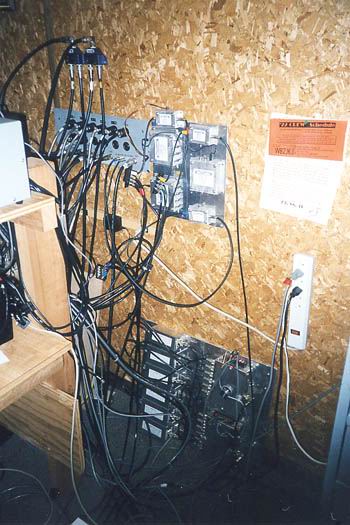

IC775 + Alpha76		All antennas are shared by
the 2 operating positions
using Topten switching and
W3NQN filters.  There is no

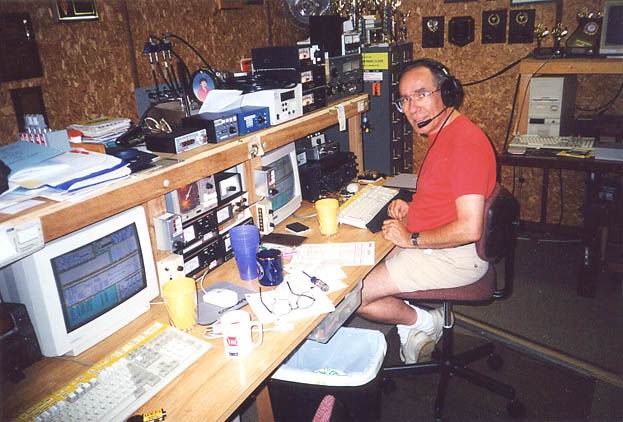

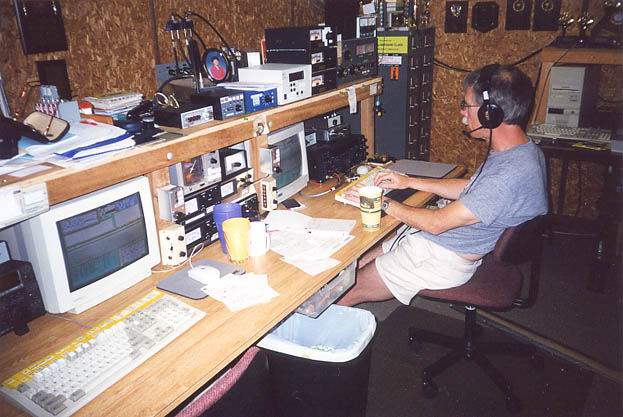

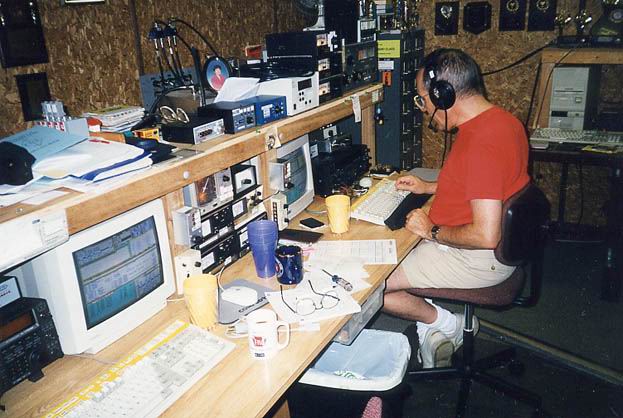

noticable interference!		Right station:
FT1000MP + Alpha76.
Both stations are fully
computer controlled and
ethernet-linked thru a
CT-network on 2 486´s.

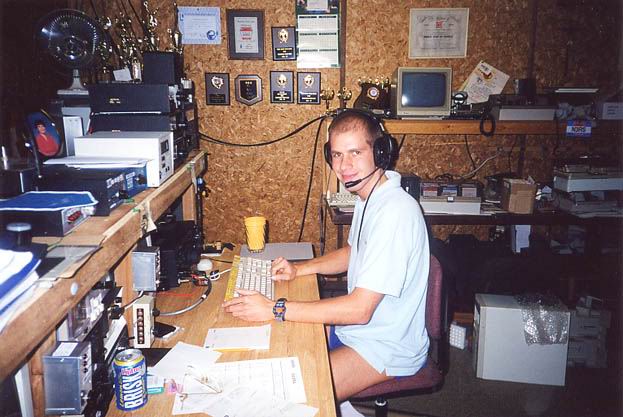

Sig N3RSDave N3RDOn 80m the Beverages open
up a completely different
layer of EU stations
compared to the Rotary DP!
These pictures made the front cover of the WAE results booklet
